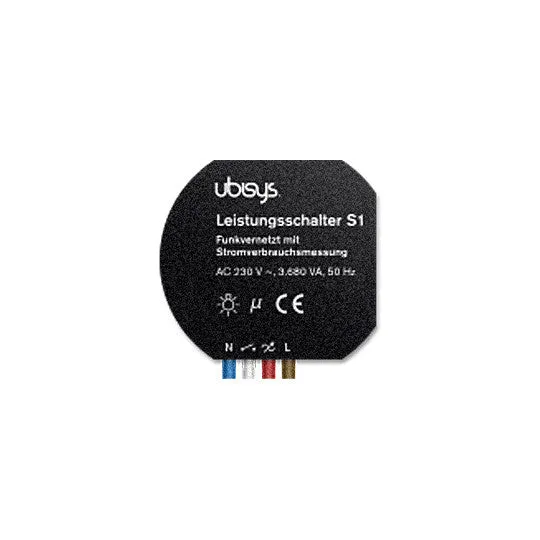

This universal switching actuator allows you to switch any electrical consumer/end device with a constant power draw of up 3680VA(!) — corresponding to a current of 16A at 230V. The actual switching is done by a bistable relays that only draws power when switched and also happens to be extraordinarily reliable and durable.

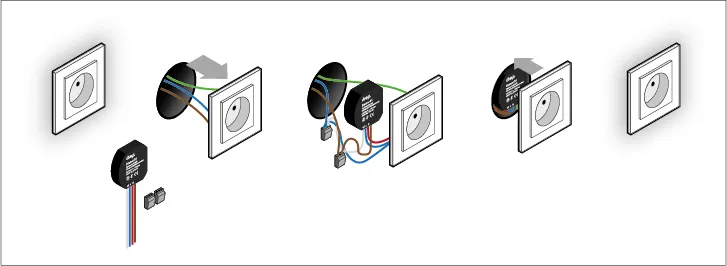

Invisible: The power switch S1 can be placed flush-mount behind any socket, behind any light switch or into a wall or ceiling outlet — You will not have to replace any existing switches or sockets.
Only unconventional switches, e.g. those installed in bus-systems (KNX/EIB) are incompatible. Being amongst the flattest in-wall modules, if not the flattest available on the market today, installation comes very easy.
The wireless components used in the smart home system by ubisys are based on the international standards IEEE 802.15.4 and ZigBee.
Details
Exciting features
- Compact size for in-wall installation
- Enables remote control of 230 VAC output
- Retain the function of existing wall switch
- Versatile input port options
- Uses Zigbee radio
- Supported by Cozify Hub
- Automatic firmware updates directly with Cozify
Turn lights on automatically
When used with PIR, turn lights on when you step into room or you come home from work.
Control conventional wall plugs
Use with any electrical device with constant power draw up of 3680VA!
Remote and automated use
Use lights remotely, or set the lights to turn on and off automatically to make it look like someone's home.
| Communication | Zigbee |
| Rated voltage | 230 V ~, 50 Hz |
| Max. switching power | 3.680 VA |
| Power consumption in sleep mode | <0.3 W |
| Environment temperature | -20°C - 45°C |

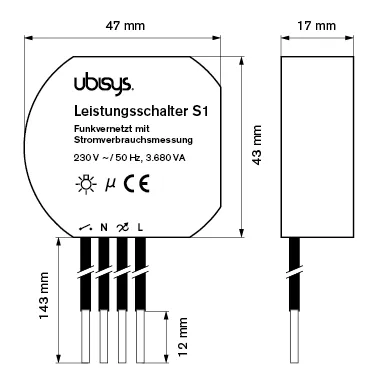

| Size | 47 mm x 43 mm x 17 mm |
Manufacturer product details:
