Don't guess the load, know the load using the Self Indicating Dynamometer!

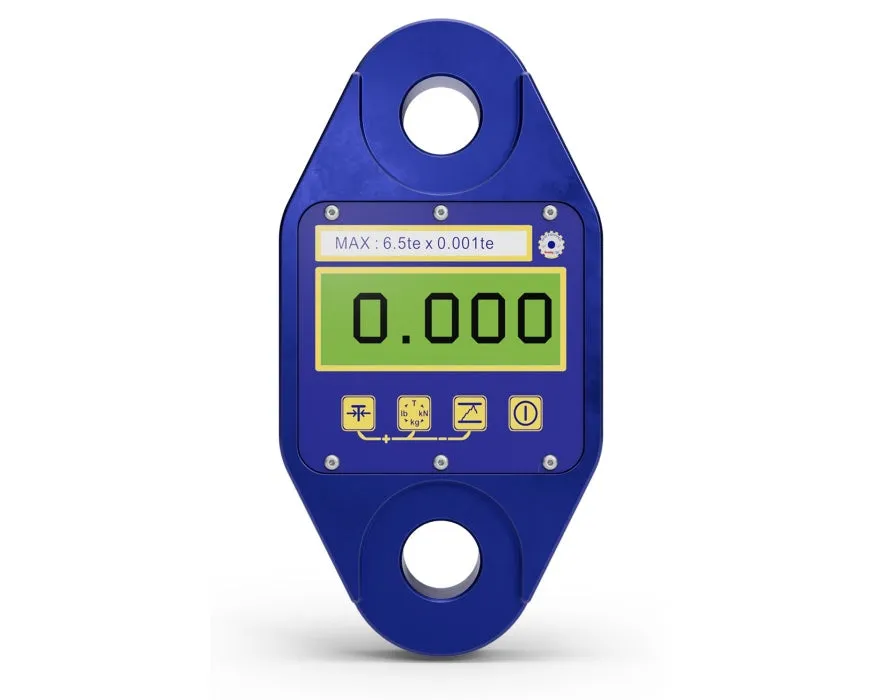

Designed to replace outdated mechanical products still in the field, this 14,300lb (6.5t) Dynamometer, the ‘SID’ is an accurate and easy way to measure load or weight.
Self indicating for close-up work operating a lever or electrical chain hoists.

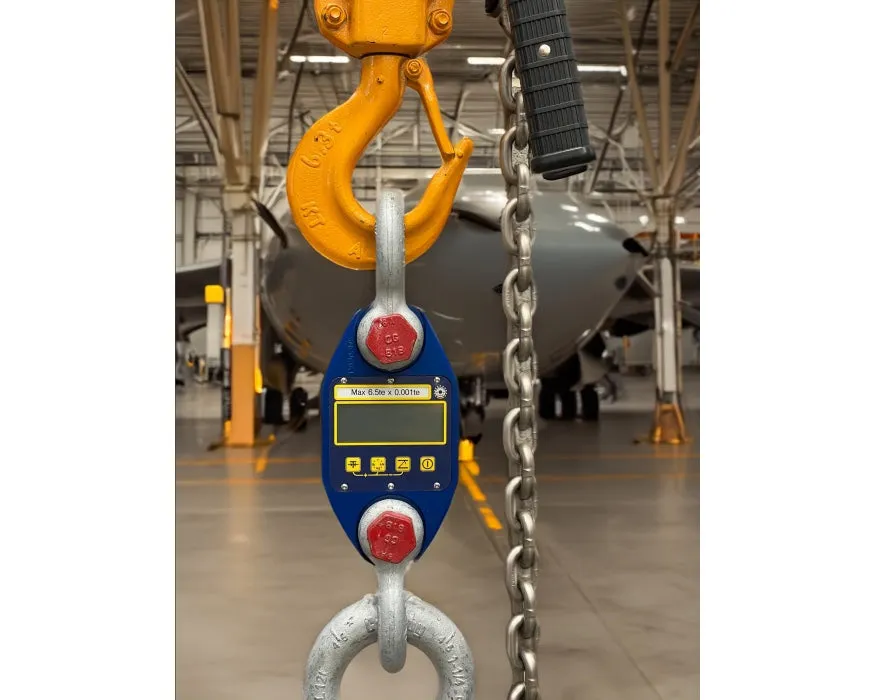

- Aircraft (engine) installation & maintenance
- Rigged with gantry crane
- Steel beam fabrication
- Water utilities
- General weighing
- Transportation tie downs
- Automotive repair shops
- Towing
- Lineman tensioning

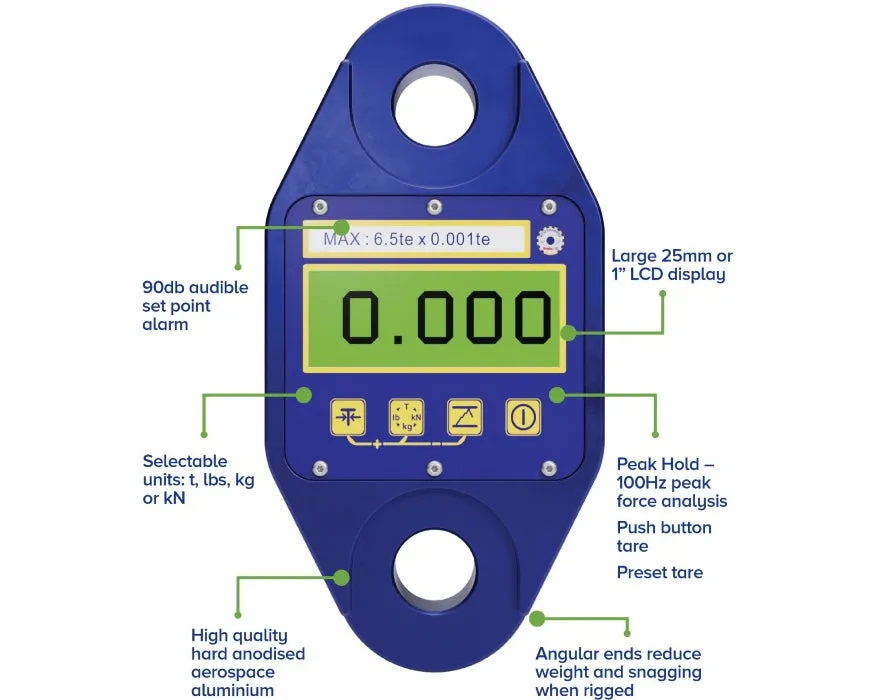

It features full-function push button controls for:
- Tare and preset tare
- Selectable measurement units (lbs, kg, kN and tonnes)
- 100Hz high-speed peak hold
- Audible set-point alarm
- Overload counter

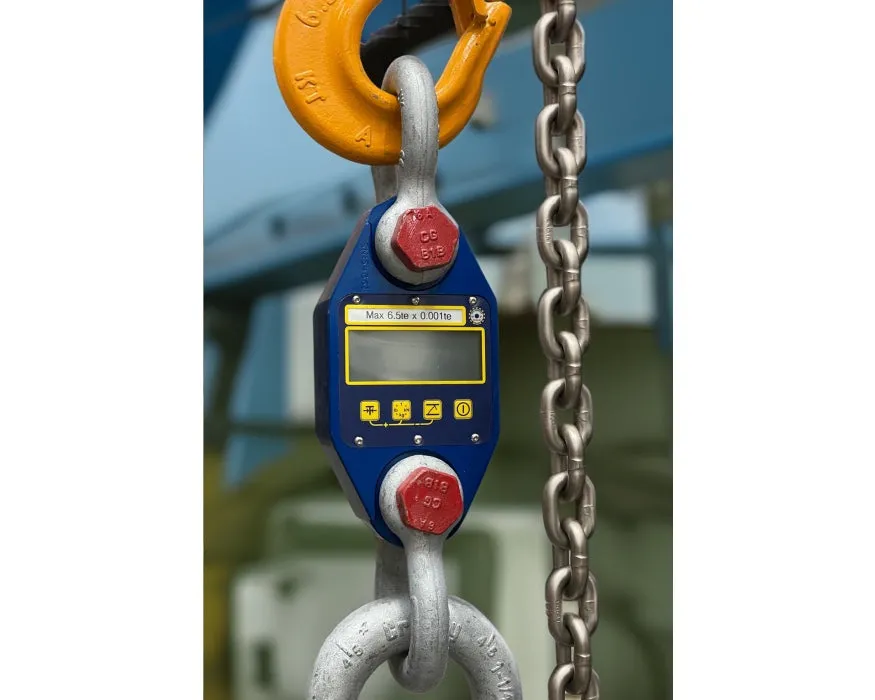

Providing accurate load measurement and incident and injury prevention this dynamometer is rigged using industry- standard shackles such as , the compact design minimises headroom loss (6.14” or 156mm from eye to eye).
Constructed with high-grade aircraft quality aluminium and with a safety factor of 6:1, its lightweight design does not sacrifice on strength in fact Crosby SP’s link style dynamometers are on average 30% lighter than their closest competitor.
There is also a Bluetooth version of this dynamometer, the
